Chemical plants

Safe and stable production processes thanks to a reliable supply of high-purity chemicals

We develop customized chemical supply systems that meet the highest standards of process reliability, quality and redundancy - for a continuous supply of media without compromise.

SUPPLY MODULES

Chemical supply 200 - 1000l

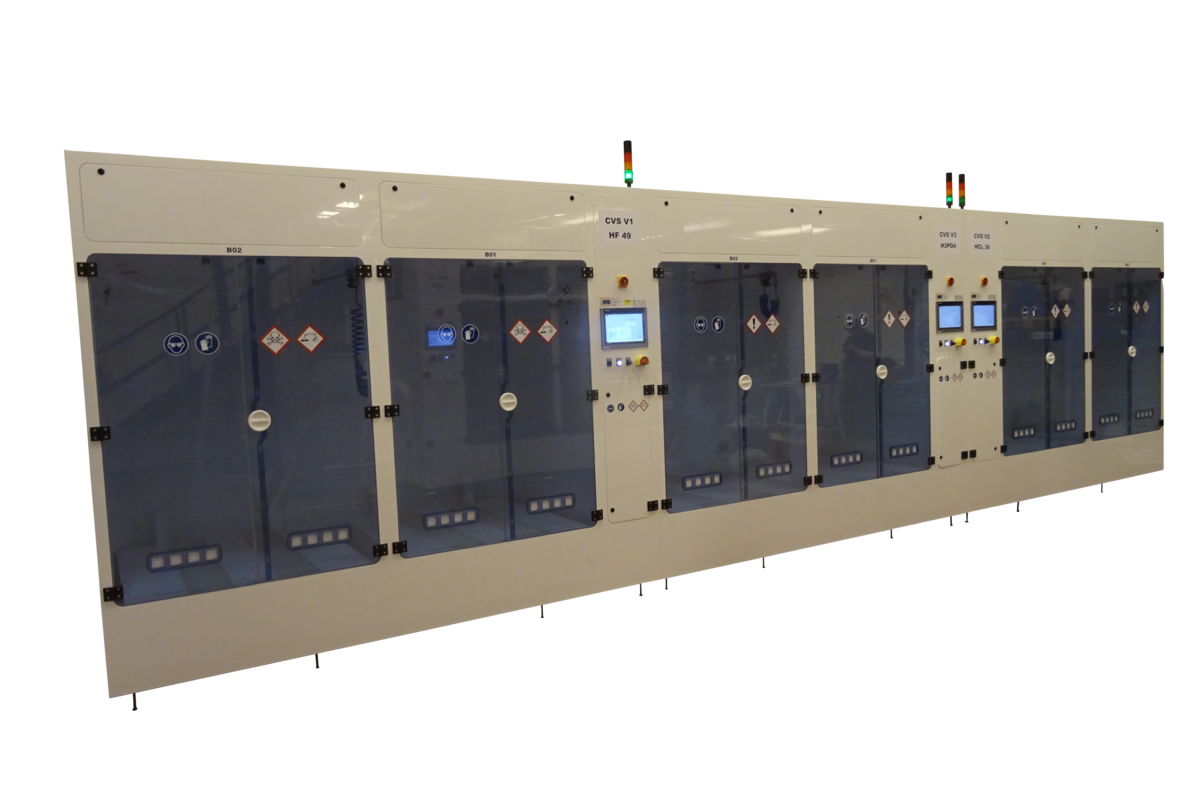

Chemical supply system

CDS

In addition to a distinctive safety concept, all systems are redundantly designed to ensure the highest possible supply and disposal reliability in the event of a possible component failure.

Technical data

Component installation
Housing	PP weiß, mit Sicherheitsauffangwanne und Leckagesensor
Component in contact with media	PFA, PVDF, PP, PE
EMSR	Siemens Steuerung (Visualisierung: Siemens TIA Portal)
Equipment	Tubing/Piping: PFA, PVDF PP

Diaphragm valves	PFA, PVDF, PP
Level detection	cap. Sensors Weighing system
Pump systems	Diaphragm pumps, metering pumps
Filter	optional
Pneumatics	Festo, SMC
QC-Adaption	AS

Disposal modules

Disposal cabinet for acids/alkalis 1000 L

Disposal Cabinet Solvents

Disposal Cabinet acid/leach 200 l

Mixing & Dosing Systems

Mixing system for solvents

Dosing system for bases

atp GmbH develops and realizes customized dosing systems for the production of individually required etching solutions. The approach is via a fully automatic process control, so that a maximum of dosing accuracy and reproducibility is guaranteed.
